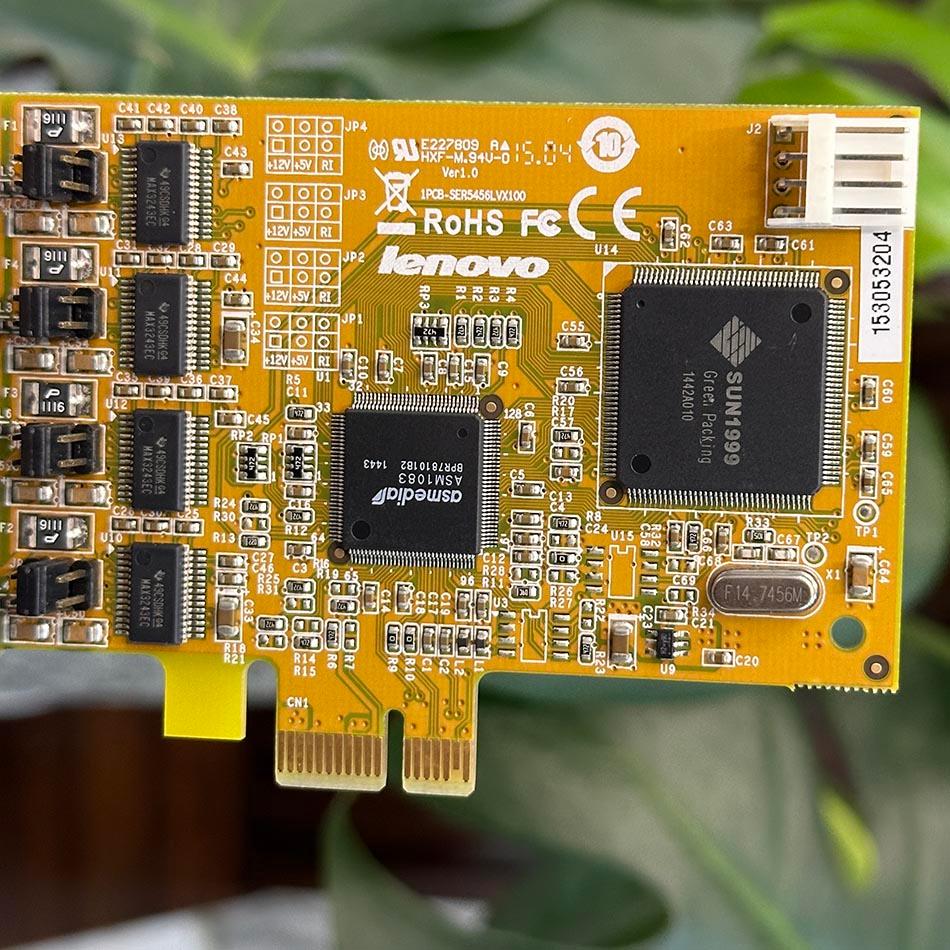

Card PCIe to 4 COM Lenovo SUNIX PCI-E Lenovo SUNIX P 1PCB – SER5456LVX100 (không kèm cáp)
Card PCIe to 4 COM RS232 thương hiệu SUNIX chất lượng cao. Hàng tháo máy đồng bộ LENOVO, mở rộng thêm 4 cổng COM RS232 cho máy tính
Tương thích với WIN XP, 7, 10, 11 (32bit, 64bit), dễ dàng cài đặt và sử dụng
Card dùng cho card Mini PC, SFF LP 8cm

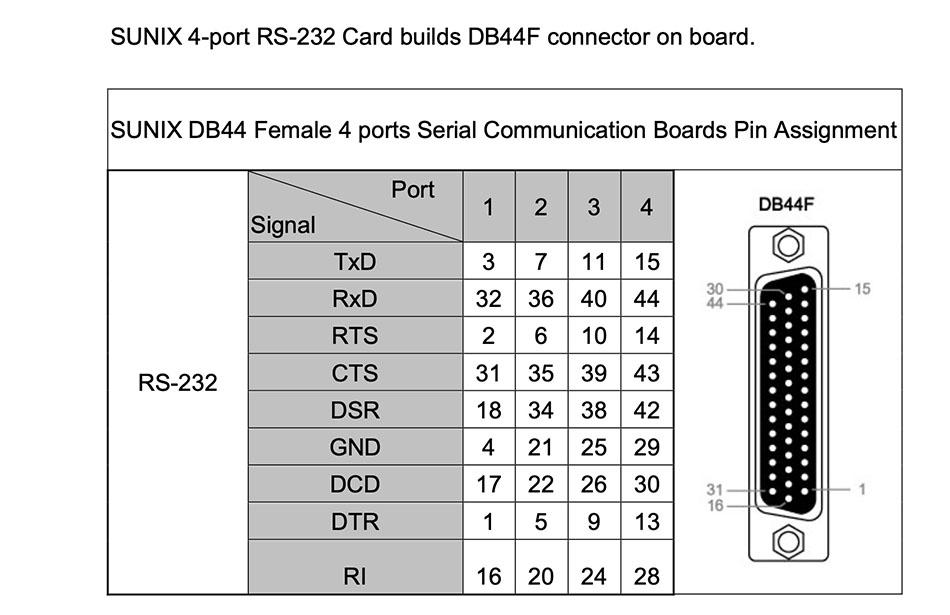

Card không kèm cáp DB44 to 4 COM RS232, bên dưới phukienpc.vn cung cấp sơ đồ, bạn có thể tự hàn cáp này.
Thương hiệu: SUNIX
MODEL: SER5456LVX100
Thông số kỹ thuật Card PCIe to 4 COM RS232 SUNIX
Description | |
| Product Description | 4-port RS-232 PCI Express Serial Board |
Serial Communication | |
| Interface | RS-232 |
| Controller | SUNIX SUN1999 (16C950 UART Compatible) |

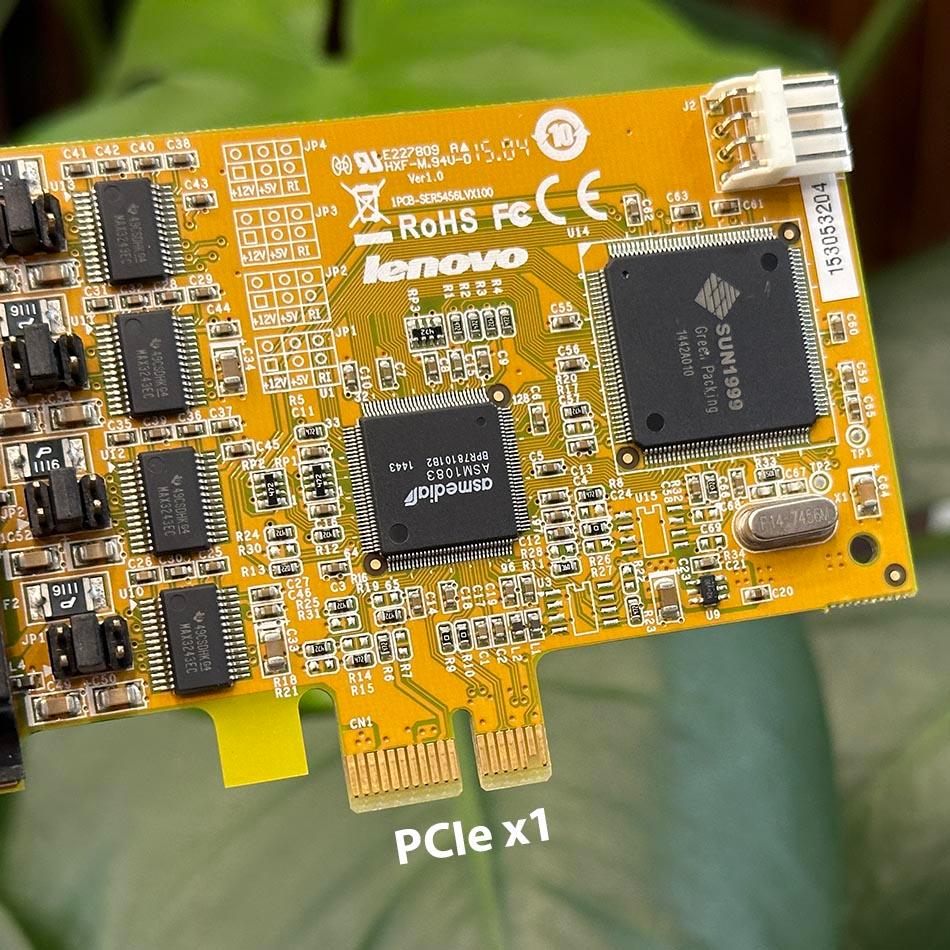

| Bus | PCI Express one lane (x1) |
| No. of Port | 4-port |
| IRQ & IO | Assigned by System |
| FIFO | 128 byte (Hardware) |
| Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate | 50 bps to 115.2 Kbps |
| Data bit | 5,6,7,8 |
| Stop bit | 1,1.5,2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge |

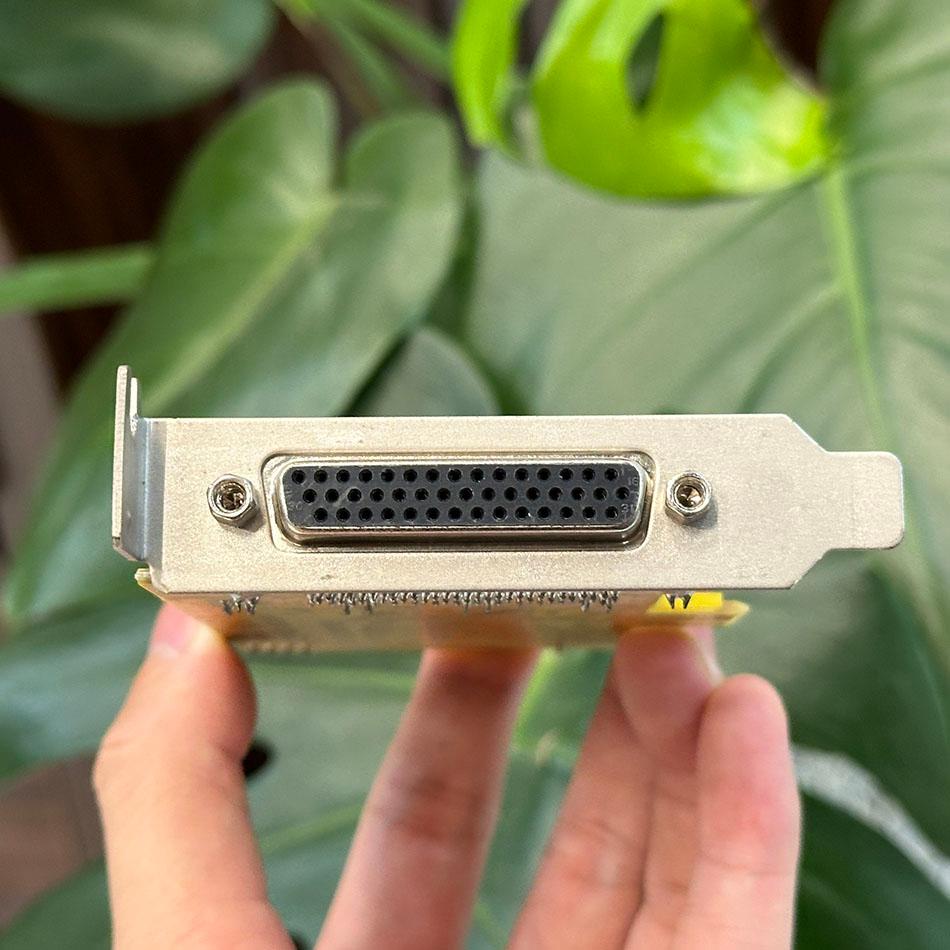

| PCB connector | DB44 Female |
Driver Support | |
| Microsoft Client | Windows XP/Vista/7/8 (X86/X64) |
| Microsoft Server | Windows 2000/2003/2008/2012 (X86/X64) |
| Microsoft Embedded | Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7 |
| Linux | Linux 2.x / 3.x / 4.x |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| *IBM OS/2 | WARP 3/WARP 4 |
| “*” marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals | |
| Hardware | CE, FCC, VCCI, BSMI |
| Software | Microsoft WHQL Windows • Microsoft Client: XP/Vista/7/8 (X86/X64) • Microsoft Server: 2000/2003/2008/2012 (X86/X64) |
Environment | |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension | |
| PCB Dimension | 109 x 67 mm |
| Bracket | Standard 121 mm |
| Bracket Space | 1 |
