Card mạng M.2 Wifi A E Key to LAN Gigabit Intel I210AT (1Gbps), RTL8125 (2.5Gbps)

Card mạng M.2 Wifi A E Key to LAN Gigabit Intel I210AT (1Gbps), RTL8125 (2.5Gbps)

Card mạng chuyển đổi M.2 NGFF WIFI A+E Key sang LAN, mở rộng thêm cổng mạng LAN cho máy tính PC, máy tính công nghiệp có khe cắm M.2 Wifi. Sử dụng nối máy tính ra mạng internet, mạng LAN nội bộ. Sử dụng ổn định hơn so với các dòng cáp chuyển đổi USB 3.0/ usb 2.0 sang LAN Ethernet.

Card mạng M.2 Wifi to Ethernet hiện phukienpc.vn cung cấp 2 loại chipset. Intel i210AT (tốc độ 1 Gbps) và 2.5G chipset Realtek RTL8125

Thông số kỹ thuật 2 dong sản phẩm:

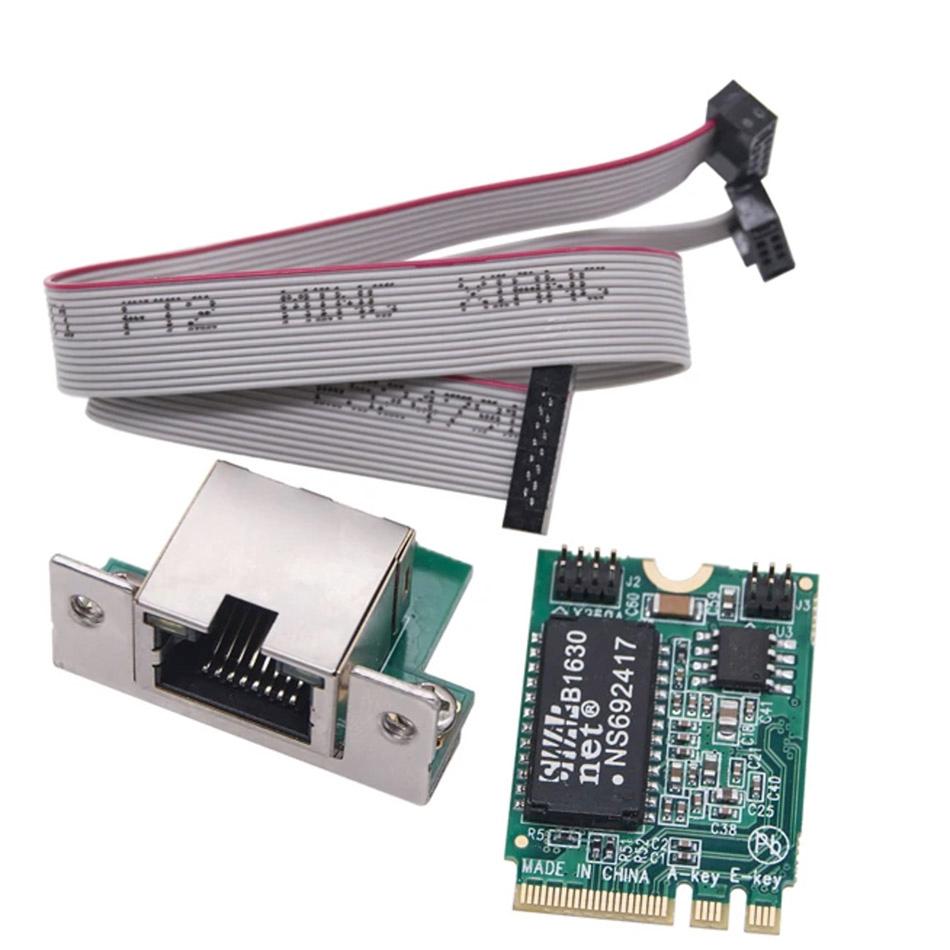

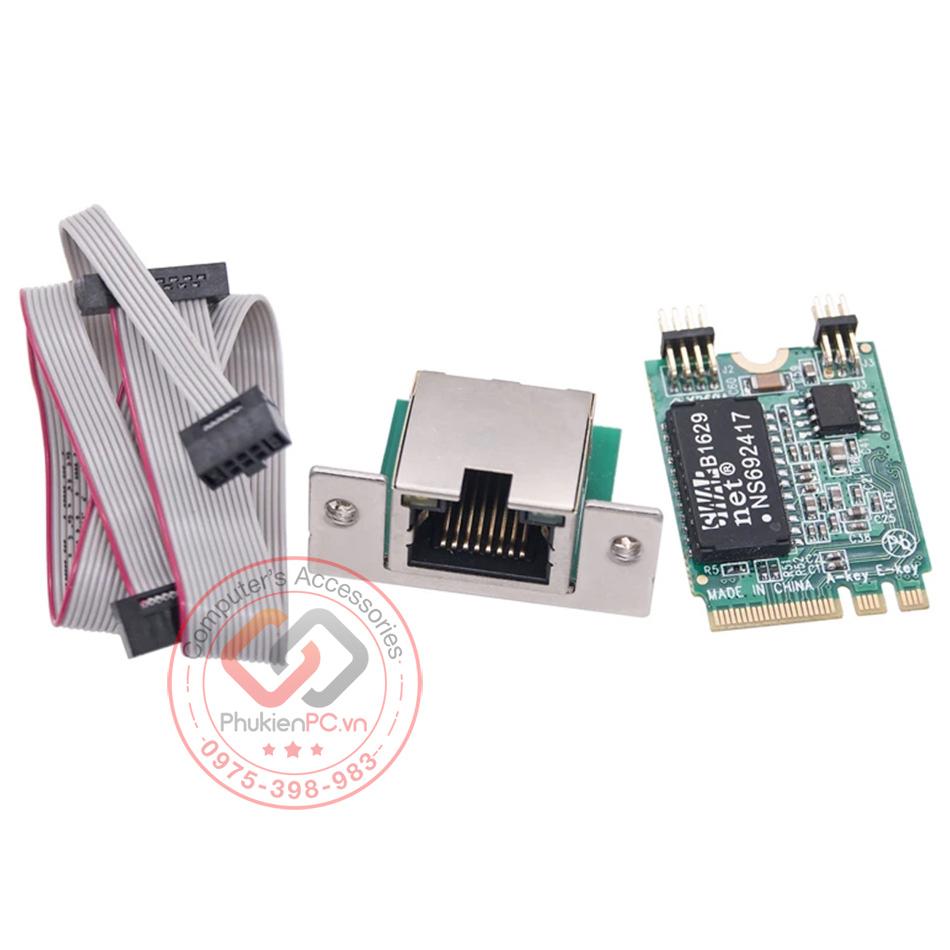

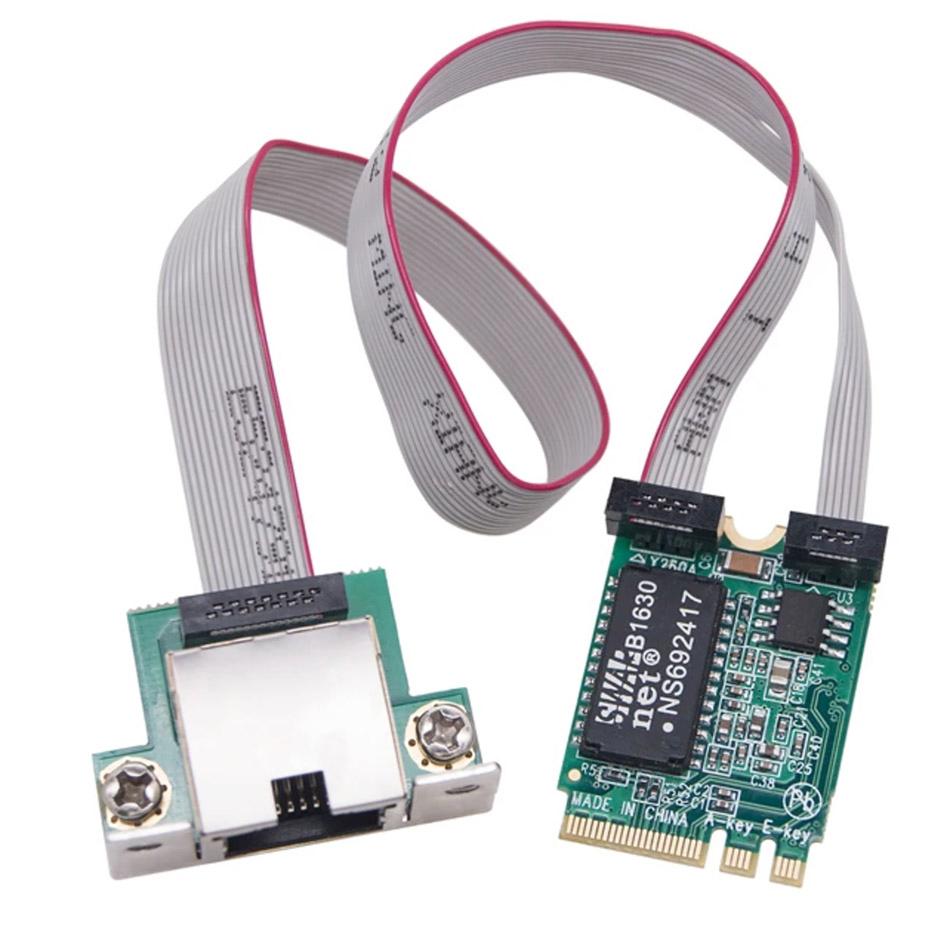

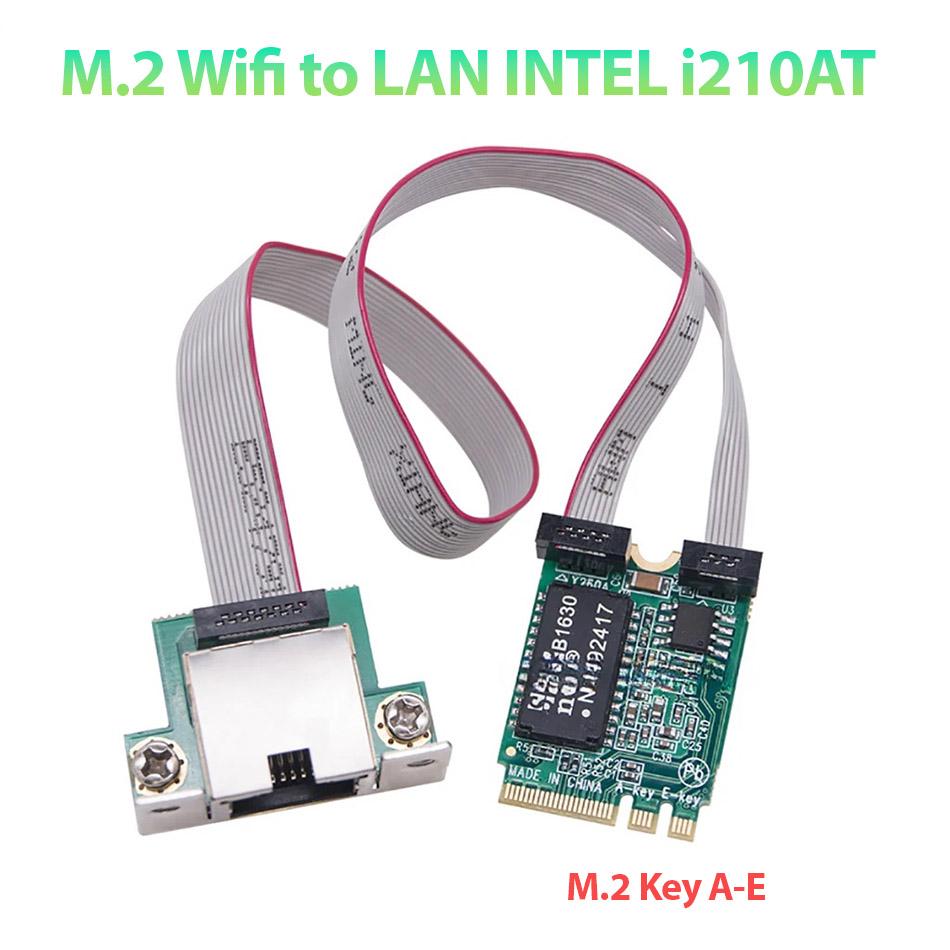

Card mạng M.2 Wifi to LAN Ethernet 1G chip Intel i210AT

Product Specifications:

– Network Type: Gigabit Ethernet

– Host Controller: Intel I210AT

– Bus Slot:  M.2 A+E

– Transmission Media: 1 x RJ45 connector

– Transmission Rate: 1000/100/10Mbps

– Network Topology: IEEE802.3z 1000BASE-X Gigabit Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.3ad Link aggregation for parallel links

IEEE 802.1Q VLAN, IEEE 1588

IEEE 802.3az – Energy Efficient Ethernet (EEE)

– Functional features: support PXE, DPDK, WOL, iSCSI, FCoE, jumbo frame, etc.

– Operating temperature: 0~55℃

– Storage Temperature: -40~70°C

– Storage humidity: 90% non-condensing relative humidity in 35℃ environment

Application Scenarios:

Mini PCIE / M.2 A+E I210 Gigabit Ethernet Adapter can be widely used in:

industrial controllers, embedded computers, single board computers, digital multimedia and other network devices.

System Requirements

Win 7/ Server 2012/ Server2008/ Win 8/ Win 8.1 / Server2016 / Win 10

FreeBSD, Linux, VMWare ESXi

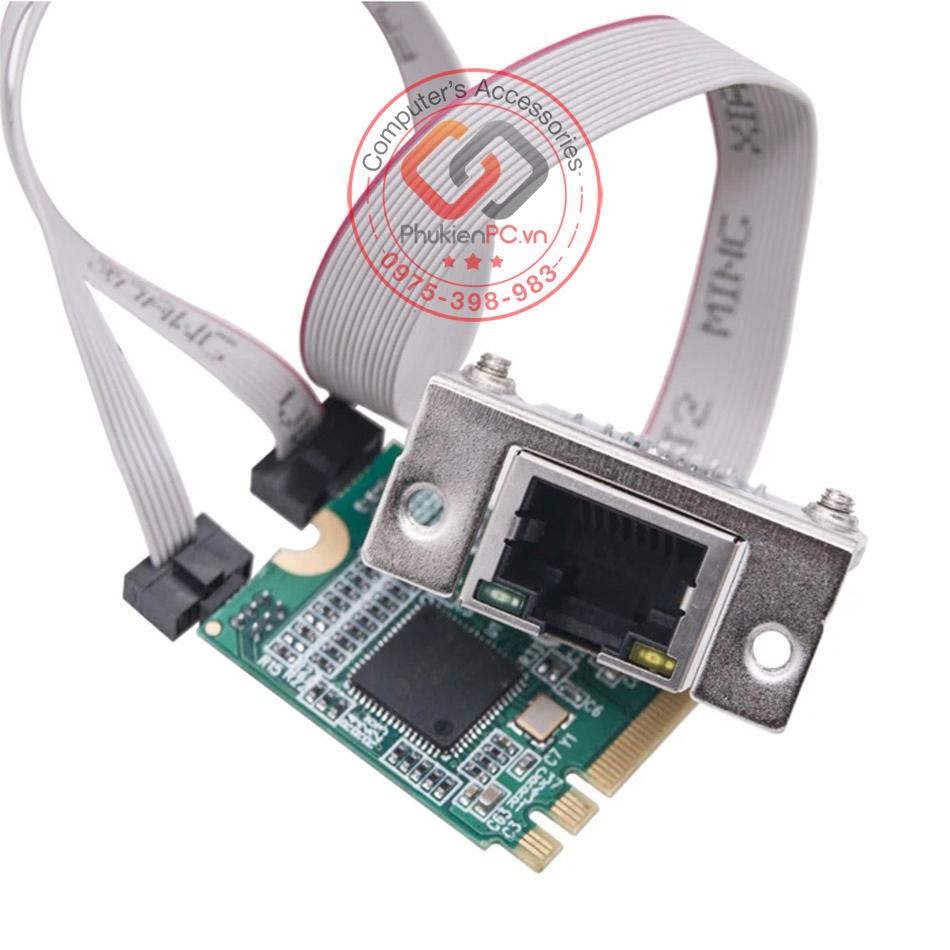

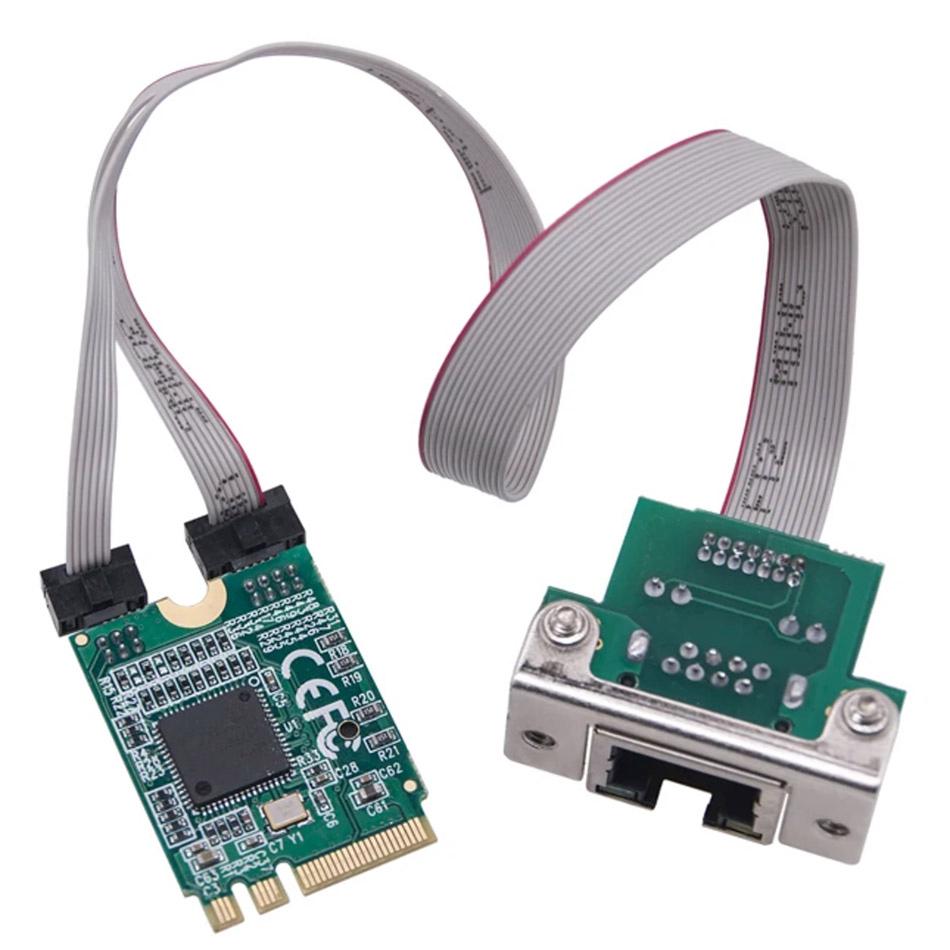

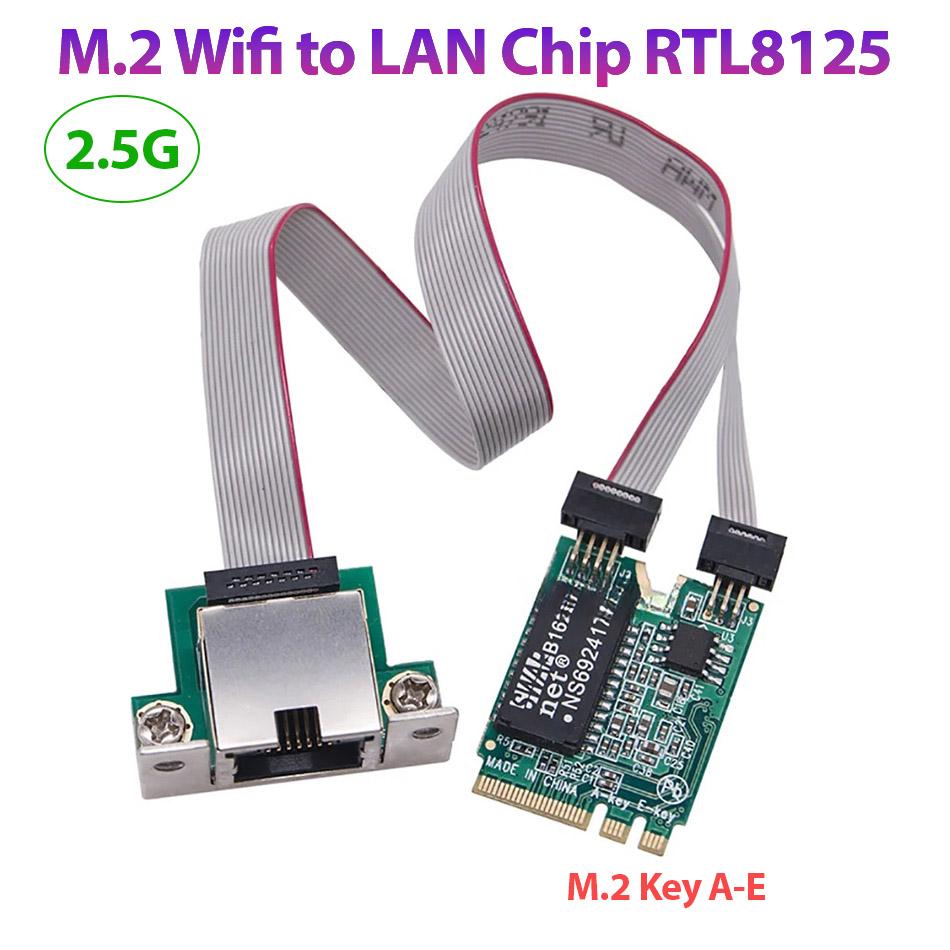

Card mạng M.2 Wifi to LAN Ethernet 2.5G chip RTL8125

Type: WIRED
Transmission Rate: 2.5G/100/1000Mbps
Kind: External
Adapter Socket: RJ45
Interface Type: M.2 Wifi A E KEY
Application: Desktop
Model Number: Ethernet Network Card
Certification: NONE
Applicable Network Type: Gigabit Ethernet
Lan Transmission Rate: 1000M Ethernet
Cable Length: 20cm/7.8inch
Applicable network type: Gigabit Ethernet
Bus Type: M.2A+E KEY
Full Duplex/Half Duplex: Full Duplex/Half Duplex Adaptive
Network accessory type: Rl45
LED Indicator: LINK/ACT (connection work)
Applicable models: desktop
Main control chip: RTL8125BG
Network Standard: EEE802.310BASE-T, IEEE 802.3u 100BASE-TX, IEEE 8023ab 1000BASE-T IEEE 802.3az Energy-Efhcient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 PriorityEncoding
Driver support: Windows 7, 8.x, 10 Windows Server Diagram 2008R2, 2012, 20162019; Linux 2.6.31 to 4.11.xLTSVersions only
Onboard single 2.5G network port, integrated 10/100/1000M/2.5G transceiver supports 2.5G and 1G Lite, 100M mode
Auto-negotiation with extended next page functionality
Support for switching/sex/skew correction
Cross detection and auto-correction
Compatible with IEEE802.3, IEEE802.3u, IEEE802.3ab Supports IEEE1588v1, IEEE1588v2, IEEE802AS Time Synchronisation Supports shaping algorithms based on IEEE802.1Qav credits Supports IEEE802.1P Layer 2 Priority Coding Supports IEEE802.1Q VLANs Tagging support for IEEE802.3az-2010
Support for IEEE802.3bz-2016 (NGBASET) Support for full-duplex flow control (IEEE8023x)
Supports jumbo frames up to 16K bytes
Supports Virtual Machine Queuing (VMQ)
Supports quad-core receive-side scaling (RSS)
Bus Type: M.2 A+E
Transmission Media: 1x 2.5G R45 port
Transmission Rate: 2.5G/1000/100Mbps
Network Mode: Support 2.5G and 1G Lite Mode
